Product Description

The Mantis line is a true testament to our commitment in providing customers with a solution to frequent monitor movement. Two aluminum cylinders work together housing an adjustable brake and a gas assisted chamber. The Mantis will allow users to make adjustments in tension that range from easy movement to a more stationary setting.

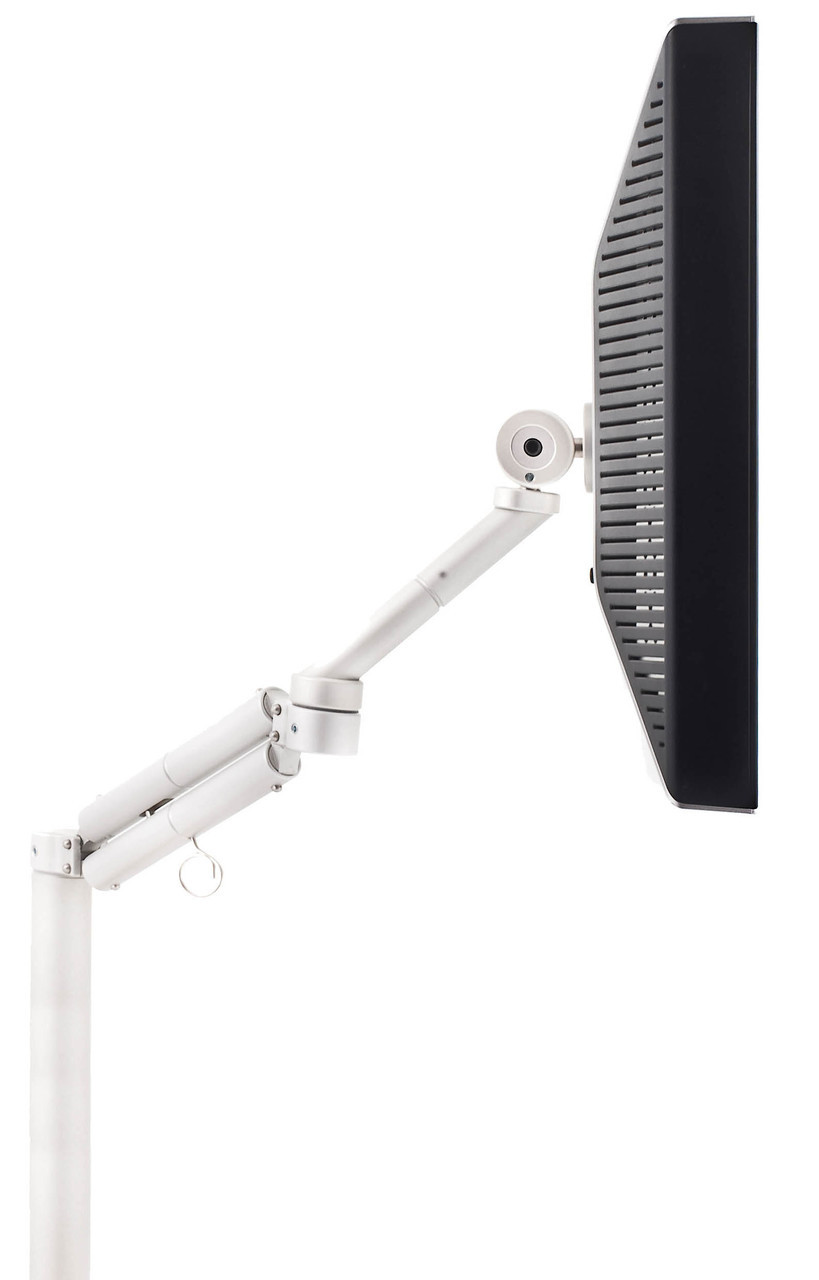

Mantis 20

Our unique high precision gas assisted monitor arm, manufactured from anodized aluminum, stainless steel and brass internal components gives this arm a precise silky smooth movement with fingertip control. The gas assistance built into the Mantis provides easy, fluid movement of the display without the need for additional locking mechanisms. The variable tension and adjustable head gives you the ability to angle the monitor, or iMac computer, to the correct viewing angle for your specific application. *21.5 inch Machead MUST be installed by an Apple tech who is ACMT certified, please call for details.

Mantis 20 Assembly Guide

Product Specifications

Mantis 20

Joints Gas assisted monitor arm
Material Machined from 60-61 T6 billet aluminum
Screen Tilt Variable tension adjustable head
Vesa Removable 75/100 interface plate
Mac Machead adapter available for iMacs & Apple Cinema LED Displays
Capacity Supports displays 2.2 to 8kg (18lbs)
Range Maximum reach of 424mm (16.7in)

Double Mantis 20

Joints Gas assisted monitor arm
Material Machined from 60-61 T6 billet aluminum
Screen Tilt Variable tension adjustable head
Vesa Removable 75/100 interface plate
Mac Machead adapter available for iMacs & Apple Cinema LED Displays
Capacity Supports displays 2.2 to 8kg (18lbs)
Range Maximum reach of 424mm (16.7in)

Mount Details


Small Edge Clamp

The Small Edge Clamp can be clamped onto desks from 18mm (3/4") to 33mm (1 1/4") thick. The clamp is adjustable using a 5 mm allen key to fit your desk thickness perfectly and extends 2 3/8" onto the desk.


Large Edge Clamp

The Large Edge Clamp can be clamped onto desks from 30mm (1 1/4") to 51mm (2") thick. The clamp is adjustable using a 5 mm allen key to fit your desk thickness perfectly and extends 4 1/4" onto the desk.


Cable Grommet

If you have a work surface with an existing cable grommet then this post can be used. Simply remove the grommet from your work surface and replace with the post ensuring that the hole is covered by the new grommet plate.


Through Desk Mount

The Through-desk mounting solution is our strongest mount. This can be installed by simply drilling a 13 mm (0.5") diameter hole in the required surface or fit through an existing hole up to 40 mm (1.5") diameter.


Single Stud Wall Mount

The single stud wall mount is useful to mount a display or iMac directly to a wall to help remove desktop clutter.


Slat Wall Mount

Adjustable slat wall mount will fit standard slat walls.


Puck For Rail Mount ( Puck Only )

The Puck slides in an aluminum extrusion and can be mounted both vertically and horizontally. The arm can then slide to any desired location by sliding the puck along the rail. ** Please let us know if the Rail is mounted Vertically or Horizontally on the wall.

Adapter Details


Vesa Plate

The standard Vesa plate is designed to fit a variety of standard monitors, displays and TVs. The hole pattern works for both the 75mm x 75mm vesa and 100mm x 100mm vesa. (For the BOA)

imacadapter19-21

19 - 21.5" iMac Adapter

For the Sidewinder. Our MacHeads are designed to work perfectly with Apple's iMac computers. These adapters give you perfect tilt control over your 19" or 21.5" iMac mounted on one of our monitor arms.

** imac stand has to be removed and our machead installed by an Apple technician who is ACMT certified. Please call for details.

215inchnewimac_adapter_largespigot

MacHead Small Spigot for NEW 21.5" iMacs (late 2012)

MacHead with Small Spigot. Our MacHeads are designed to work perfectly with Apple's iMac computers. These adapters give you perfect tilt control over your 21.5" iMac mounted on one of our monitor arms.

** imac stand has to be removed and our machead installed by an Apple technician who is ACMT certified. Please call for details.
